Home Products & Solutions Polymer Process Injection Molding Solutions Product Toggle-clamping Hydraulic Injection Molding Machine A5-N Series High-end Servo Injection Molding Machine

A

To ensure precision and stability, our optimized injection units and uniform-stress molding technology guarantee durability and reliability. Clamping forces range from 65 to 1125 US Tons.
Icon
Wide range of application

Icon
Precise and stable

Icon
Reliable and durable

Icon
High-efficiency and energy-saving

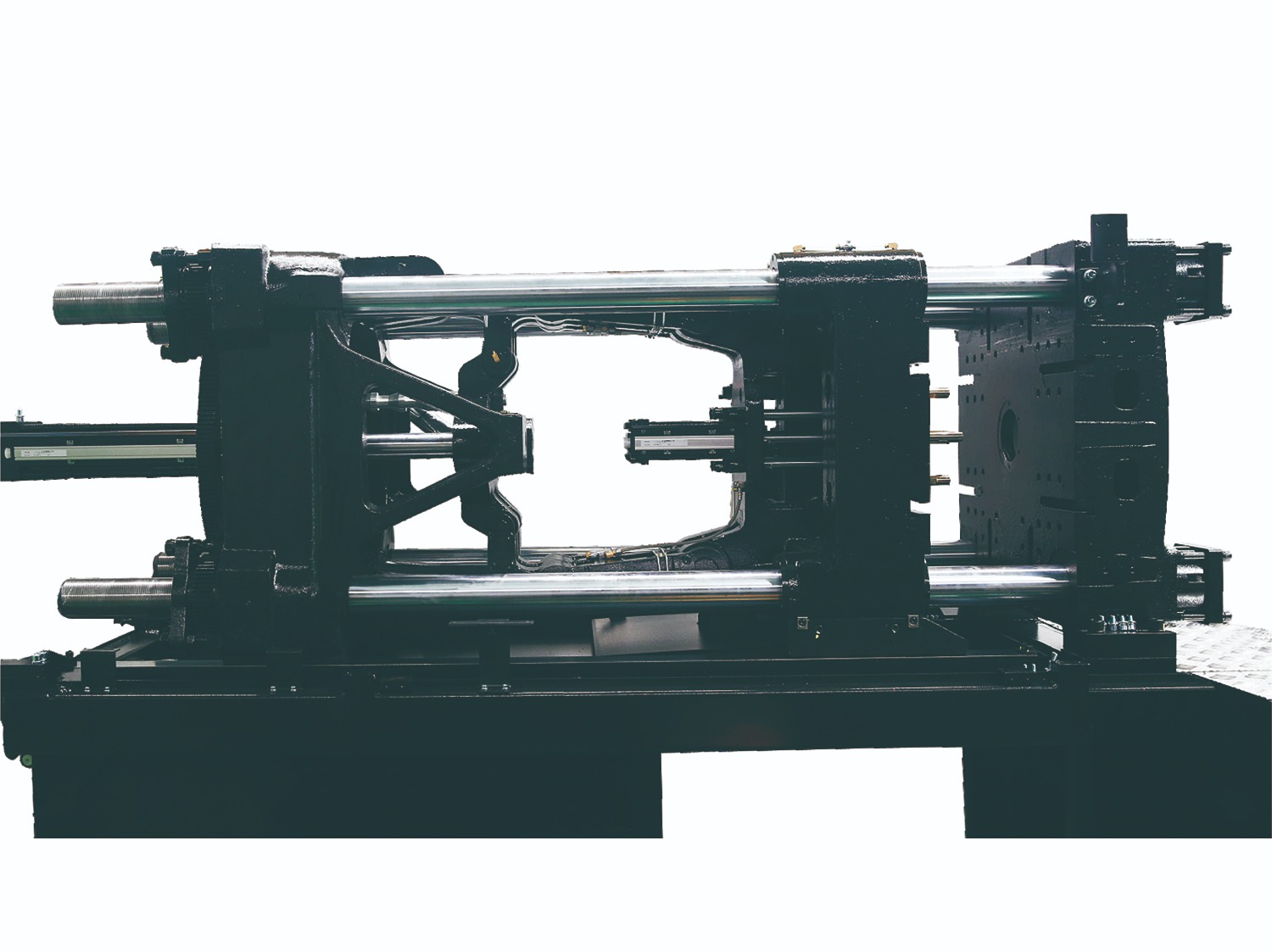

Clamping Unit
High-rigidity T-slot platen
Increases the overall rigidity of clamping unit by 30%, brings convenience for installation and removal of mold, reduces the wear of thread due to long-term use of screw hole and extends the life of platen.
Extended moving platen support
- The movable platen is equipped with front heavy-load sliding supports.
- The center of gravity of support moves forwards to the mold mounting surface, preventing the platen from tilting. Machine still operates steadily when it is loaded with heavy molds.
Extended ejector guiding platen design
- Ejector guiding extended, effectively avoiding ejector plate tilting and improving stability of ejection.
- Uniform distribution of ejector force , precise ejection position with better ejection performance.
Injection Unit
Integrated linear guide rail structure
- Machine adopts integrated linear guide rail, horizontal double-carriage design and double-cylinder injection to ensure injection is reliable & stable.
- Integrated linear guide rail support reduces the friction between injection unit and linear guide rail or tie bar and enhances production repeatability.
Three bearings for 290A5-N and larger models
A deep-groove ball bearing is added to the front of transmission shaft, close to the screw, to improve the support of transmission shaft, reduce vibration when it rotates and prolong the service life of thrust bearing.
Proportional back pressure for plasticizing
Proportional back pressure facilitates accurate control by industrial computer and enhances the stability of injection.
Yizumi’s third-generation energy-saving servo technology
- Yizumi has comprehensively grasped the application technology of energy-saving servo system since it was further studied in 2005.
- The third-generation servo system has been improved and optimized in the internal structure of motor, the standard of magnetic steel, the selection of oil pump and the development of drive software to achieve superior performance in stability, reliability, durability, energy conservation, efficiency and low noise; the servo system uses 30%-80% less energy than conventional hydraulic machines.

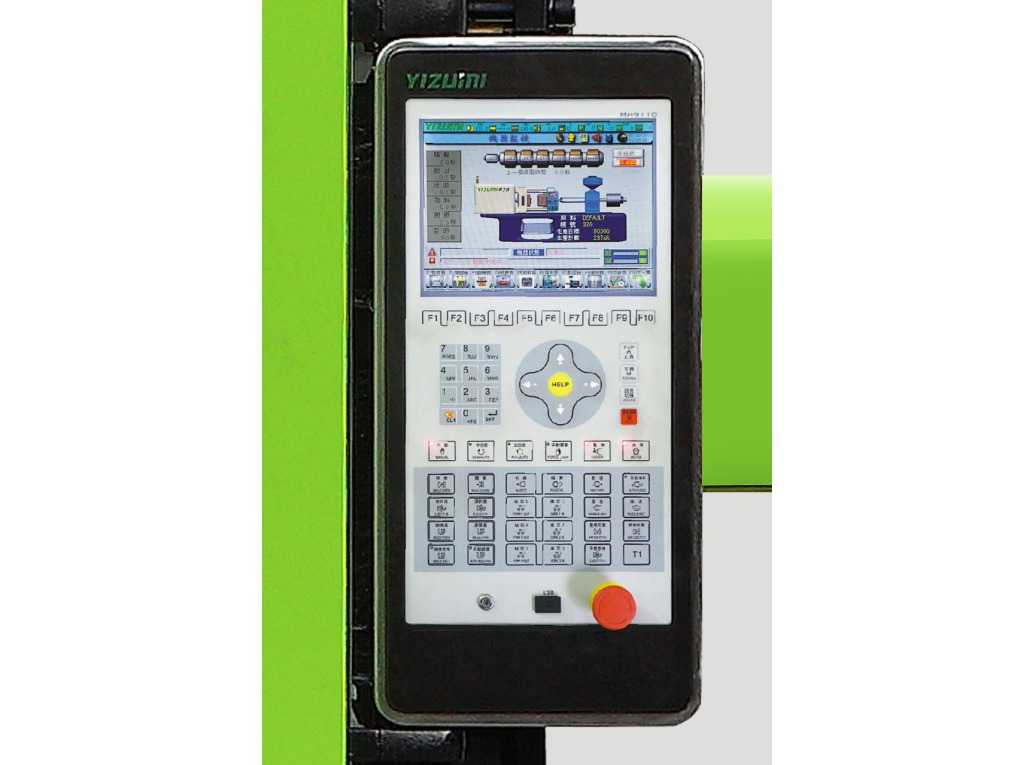

High precision control system
- A5-N series employs Austria' s KEBA control system with user-friendly interface and higher processing speed.
- 12 TFT color touch screen, visualized graphic parameter setting, actual parameter values recorded and displayed with curves, more accurate online process analysis.
- Free programming is available to meet the needs of special molds and processes.
- Extensible I/O modules can integrate with more functions, including temperature control and sequence valve as needed.
