This series goes beyond traditional machine standards, integrating automation and intellectualization seamlessly for enhanced quality consistency and efficiency. Superior in thickness, precision, and complexity, it surpasses traditional models, meeting the most demanding core product needs. Clamping forces range from 100 to 1,510 US tons.
Icon
Stability and Precision

Icon
Automation and Intellectualization

Icon
Efficiency and Flexibility

Machine Introduction Video

Machine Introduction Video

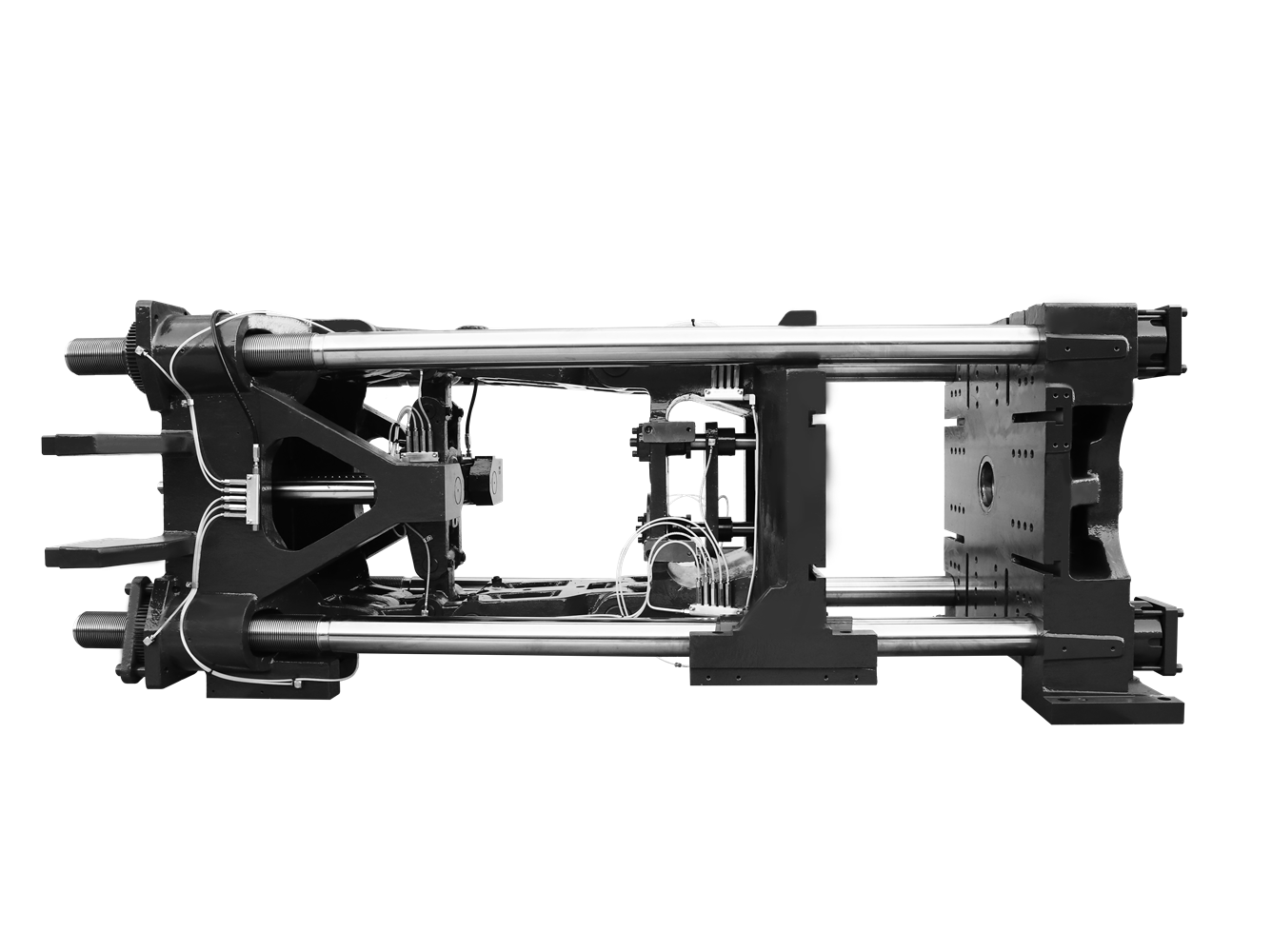

Clamping Unit
Dual-cylinder parallel ejection design
- Uniform force application for mold release
- Servo motor driven ejection is optional
- Accuracy of ejection position up to 0.2mm, conducive to product accuracy and repeatability.
- Can achieve functions such as various modes of synchronized ejection and ejector retraction, gate cutting inside the mold, etc.
High stability of the TBF technology
- The clamping unit adopts the TBF (Tie Bar Free) technology for easy operation and maintenance.
- Keep the mold area clean to prevent product contamination.
Unique “SMART” mold protection feature
- Can detect very small obstacles and resistance.
- Reduce the extent of mold damage when there are foreign objects in the mold cavity or faulty operation occurs.

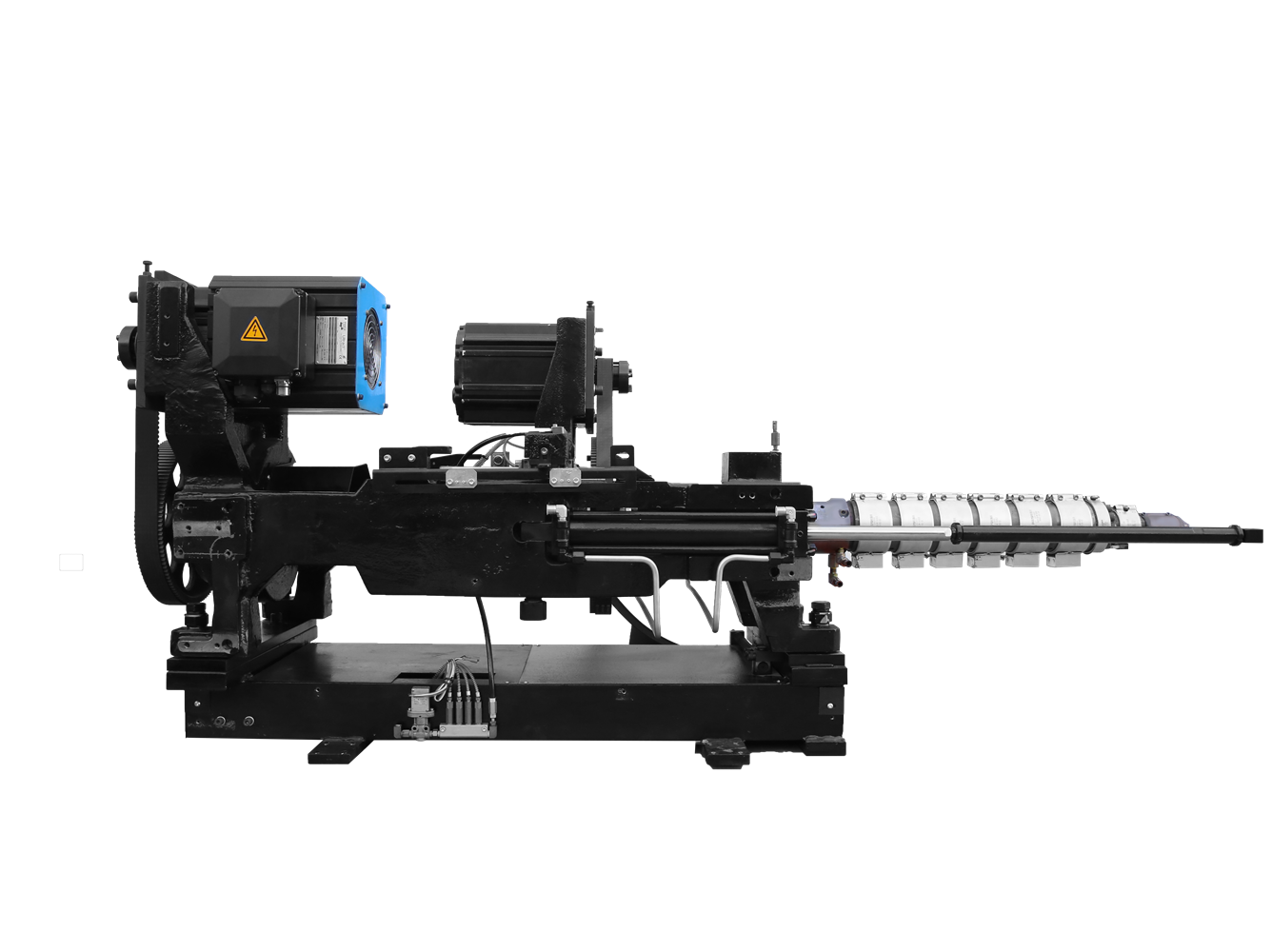

Injection Unit
The use of advanced LGS(Linear Guide Support) technology
Integrated design enhances the overall rigidity of the injection unit. No unnecessary friction. Fast forward and backward.
Built-in hydraulic pump station
Support a variety of molding process with great flexibility and efficiency. For ejector, nozzle contact force & core pull.
Closed loop injection pressure control technology
- Provide more accurate control for more stable, reliable and precise molding.
- The stability precision of injection pressure and holding pressure is at ±0.1Mpa.
Unique servo direct control (SDC) technology
- Four servo motors control injection, plasticizing, clamping, and ejection independently, allowing faster feedback, more responsive control, and improved control accuracy.
- More precise control of speed, position and pressure to meet the requirements of precision equipment.

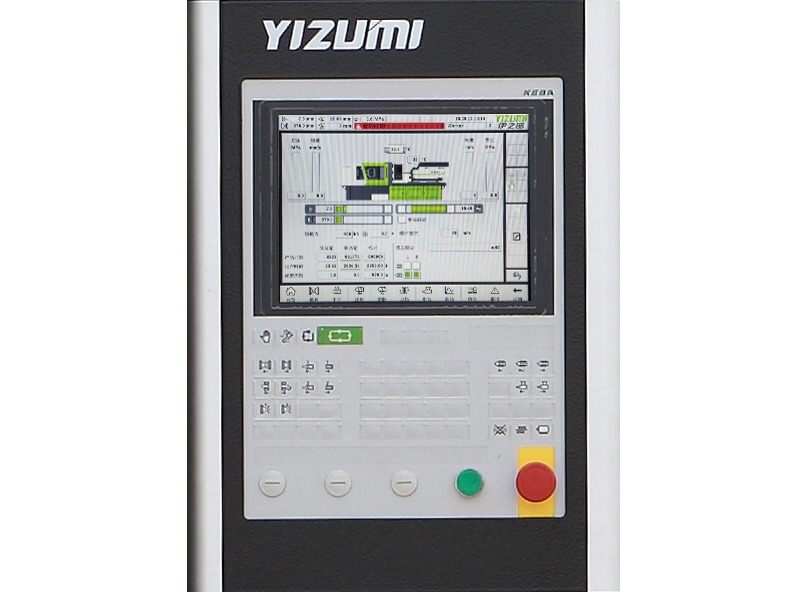

European KEBA2000 Controller
- Standard Process quality control (PDP), and Statistical process control (SPC) features
- Centralized (networked) real-time remote operation and control
The flexible I/O expansion modules allow integration of more features as needed and are programmable
