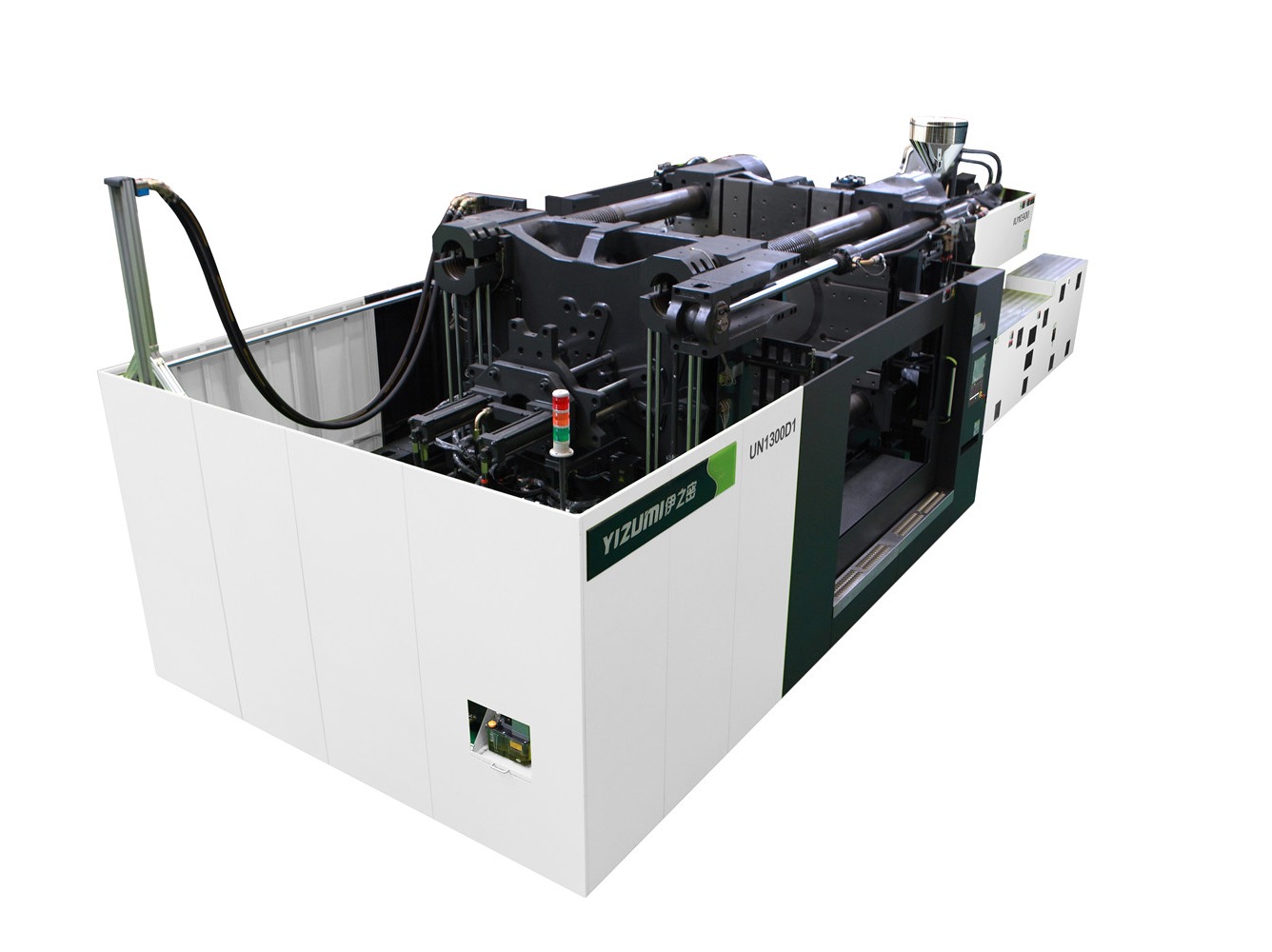

The YIZUMI Advanced Series, with cutting-edge German technology and extensive expertise, leads in large-tonnage two-platen injection molding machines. Our innovative approach aims to set a benchmark in this transformative field. Clamping forces range from 5,500 to 44,000 US tons.
Icon
≤3% Smaller variation of force on tie bar

Icon
55% Shorter dry cycle

Icon
≤3‰ Outstanding injection stability

Machine Introduction Video

Machine Introduction Video
Clamping Unit
Impact-proof synchronized lock nut mechanism
Impact-cushioning synchronized lock nut closing is fast and more reliable with low noise.
Independent high-pressure cylinder
Mold opening under high pressure for standard. Large opening force can solve molding problems of deep-cavity products or car lights which are strongly coated on mold or have difficulty in mold opening.
Highly-rigid accurate guide device
Long movable platen supports and L-shape guide rails on machine frame facilitate high load-bearing, guide capacity, and anti-roll adjustment.

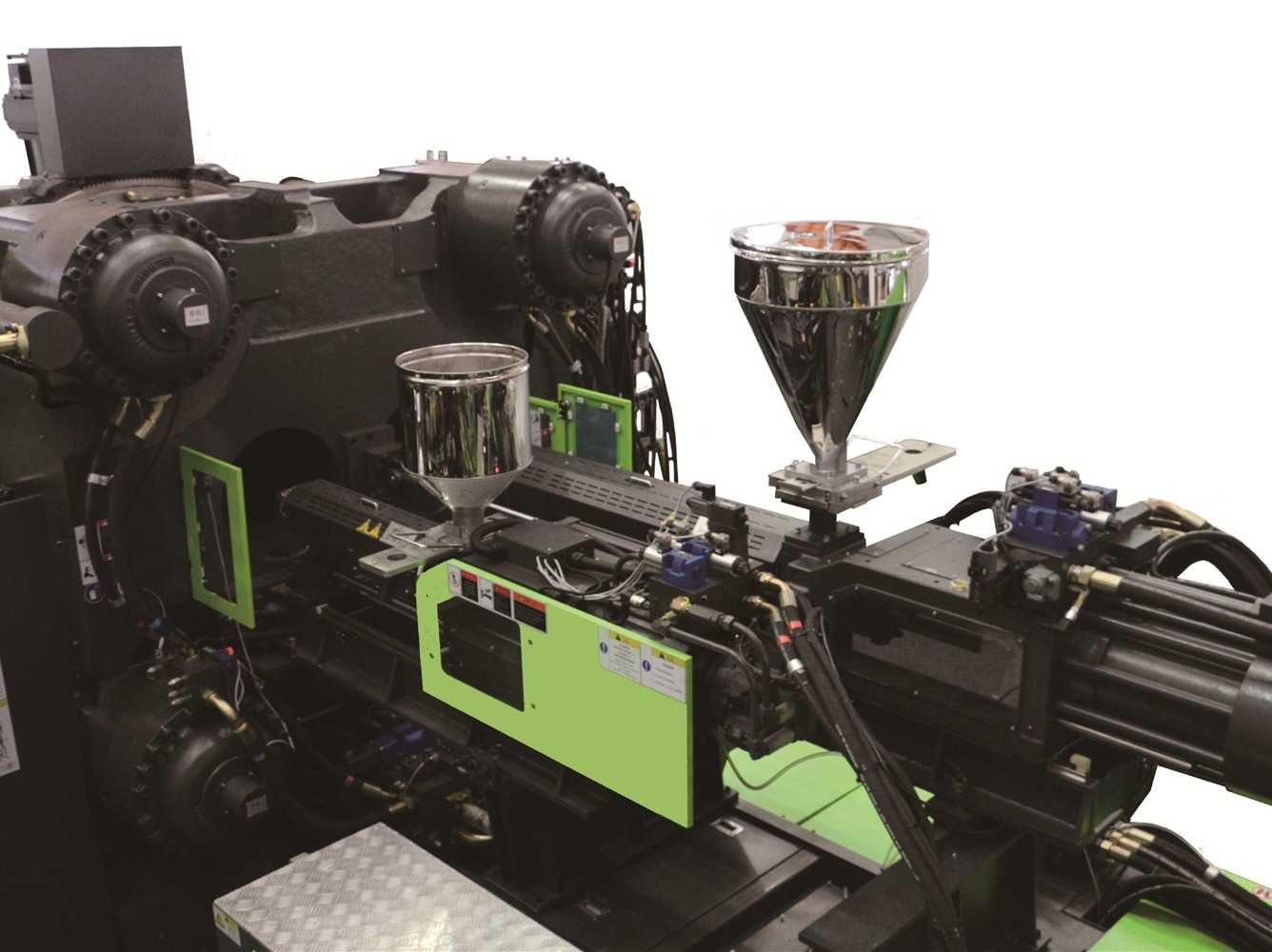

Injection Unit
Ultrasonic displacement sensor
Ultrasonic displacement sensor for position measurement is characterized by absolute value, little signal interference, long service life and high accuracy of measurement.
Adaptive PID temperature control
With the use of durable ceramic heater bands and adaptive PID control performed by the Austrian controller, temperature control accuracy is up to ±0.5℃.
Excellent injection performance
Repeatability of injection end position up to ±0.2mm and repeatability of part weight ≤3‰ meet the needs of increasing efficiency and lowering costs.

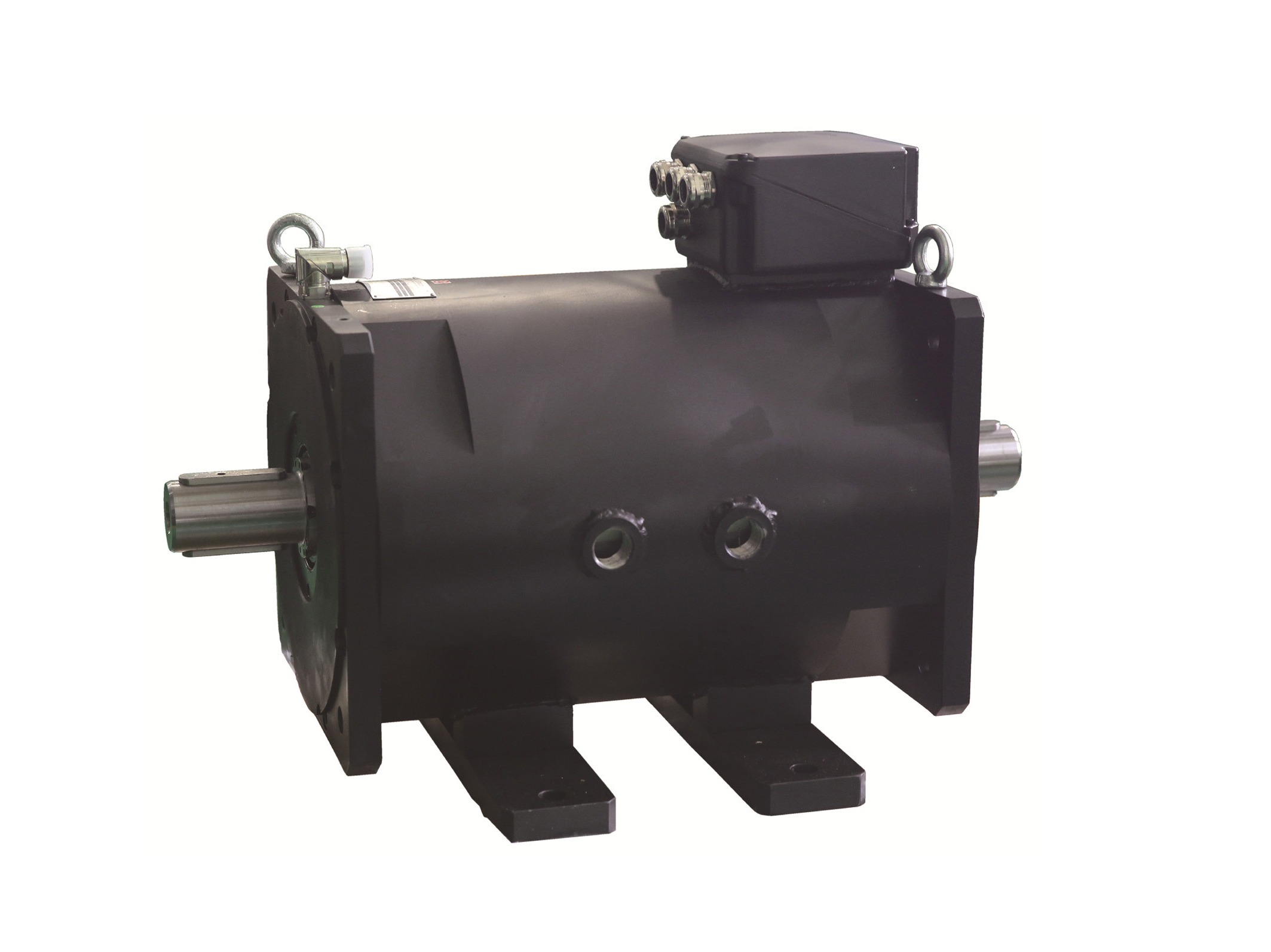

Servo system driven by fully oil-cooled two-headed motor
- The fully oil-cooled two-headed motor-driven servo system is the quintessence of highly-integrated servo pump
system. It eliminates the influence of instability in machine operation due to the work environment and further reduces energy consumption of hydraulic circuit.
- Synchronized drive technology makes hydraulic circuit response faster and movements more efficient.

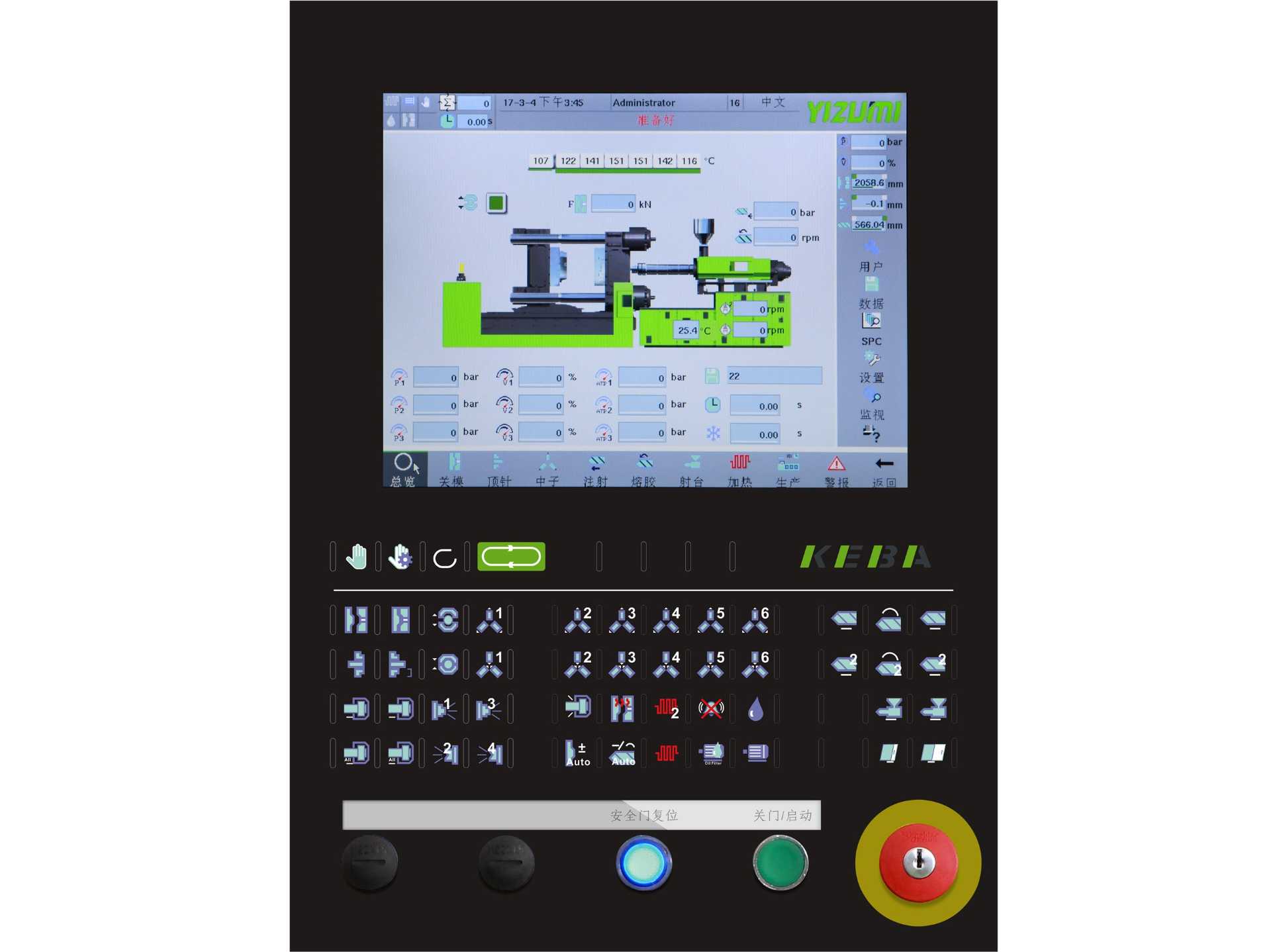

European KEBA Controller
- Memory of alarm and process parameter change, USB expansion without limit;
- Programming with no restrictions, record of process parameter change curve is available;
- Production process data control (PDP) and statistical process control (SPC);
- New processes like MuCell, ICM, IMC can be integrated;

Industry Application

Relevant Recommendation
Relevant Products
Relevant Technologies
D1M Series Two-platen Multi-component Injection Molding Machine

D1M Series Two-platen Multi-component Injection Molding Machine

YIZUMI MultiPro offers multi-component molding with advanced technology, simplifying production with one step. Leading in this field, YIZUMI provides high-end solutions. Clamping forces: 5,000-24,000 kN.
D1 Series Two-platen Injection Molding Machine

D1 Series Two-platen Injection Molding Machine

YIZUMI Advanced Series: German tech, expertise in large-tonnage two-platen machines. Innovating to set a benchmark. Clamping forces: 5,500-40,000 kN.
FF Series Electric Injection Molding Machine

FF Series Electric Injection Molding Machine

This series surpasses traditional machine standards, facilitating seamless automation and intellectualization integration for improved quality consistency and efficiency. Superior in thickness, precision, and complexity, it meets demanding core product needs. Clamping forces range from 900 to 13,800 kN.
Uniform stress distribution control technology of tie bars

Uniform stress distribution control technology of tie bars

With special technical treatment, tie bars are highly-rigid and resistant to wear and corrosion. Uniformity of stress distributed on tie bar threads is over 99% without unbalanced force, bringing durability.
Adaptive PID temperature control technology

Adaptive PID temperature control technology

With the use of durable ceramic heater bands and adaptive PID control performed by the Austrian controller. temperature control accuracy is up to ±0.5℃.
Fully oil-cooled two-headed motor-driven servo control technology

Fully oil-cooled two-headed motor-driven servo control technology

The fully oil-cooled two-headed motor-driven servo system is the quintessence of highly-integrated servo pump system. It eliminates the influence of instability in machine operation due to the work environment and further reduces energy consumption of hydraulic circuit. Synchronized drive technology makes hydraulic circuit response faster and movements more efficient.
