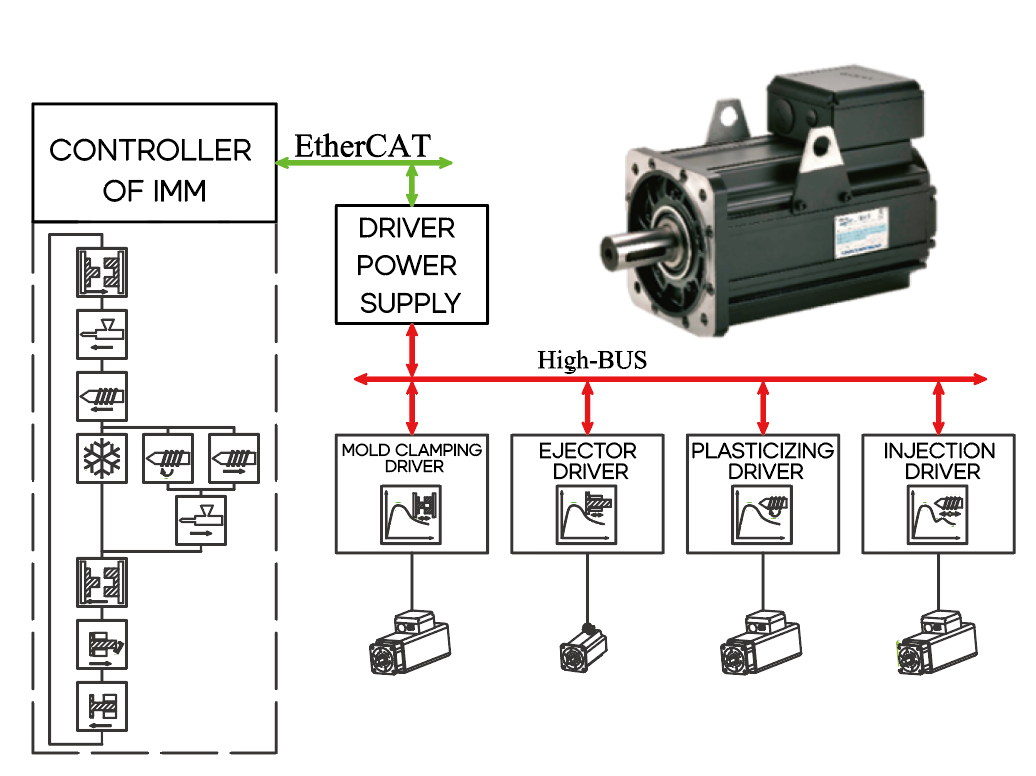

1. Including Inovance controller, servo drive and high-response motor. 2. Communication between the controller and the drive upgrades to digital type. Same brand controller and drive show better performance, faster and more accurate. 3. Quick and stable mold opening, smooth mold closing with no impact, less wear and tear to machine. 4. Mold opening repeatability is within ±0.5mm, with overshoot less than 2.0mm. 5. Deviation of injection end position is less than 0.25mm. 6. Deviation of material feeding position is less than 0.2mm. 7. Temperature overshoot of first-time heating is less than 3℃, within ± 1℃.

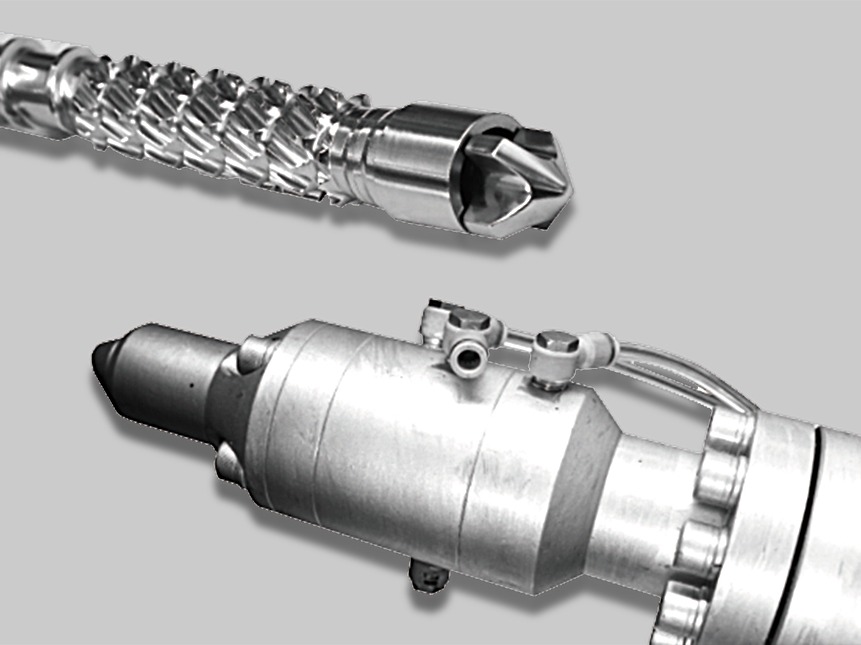

1. The plasticizing is synchronized with the cooling, mold opening and part picking, shorter cycle time. 2. PAC380K3 and above model are generally equipped with hydraulic synchronous plasticizing function, which shortens the product molding cycle.

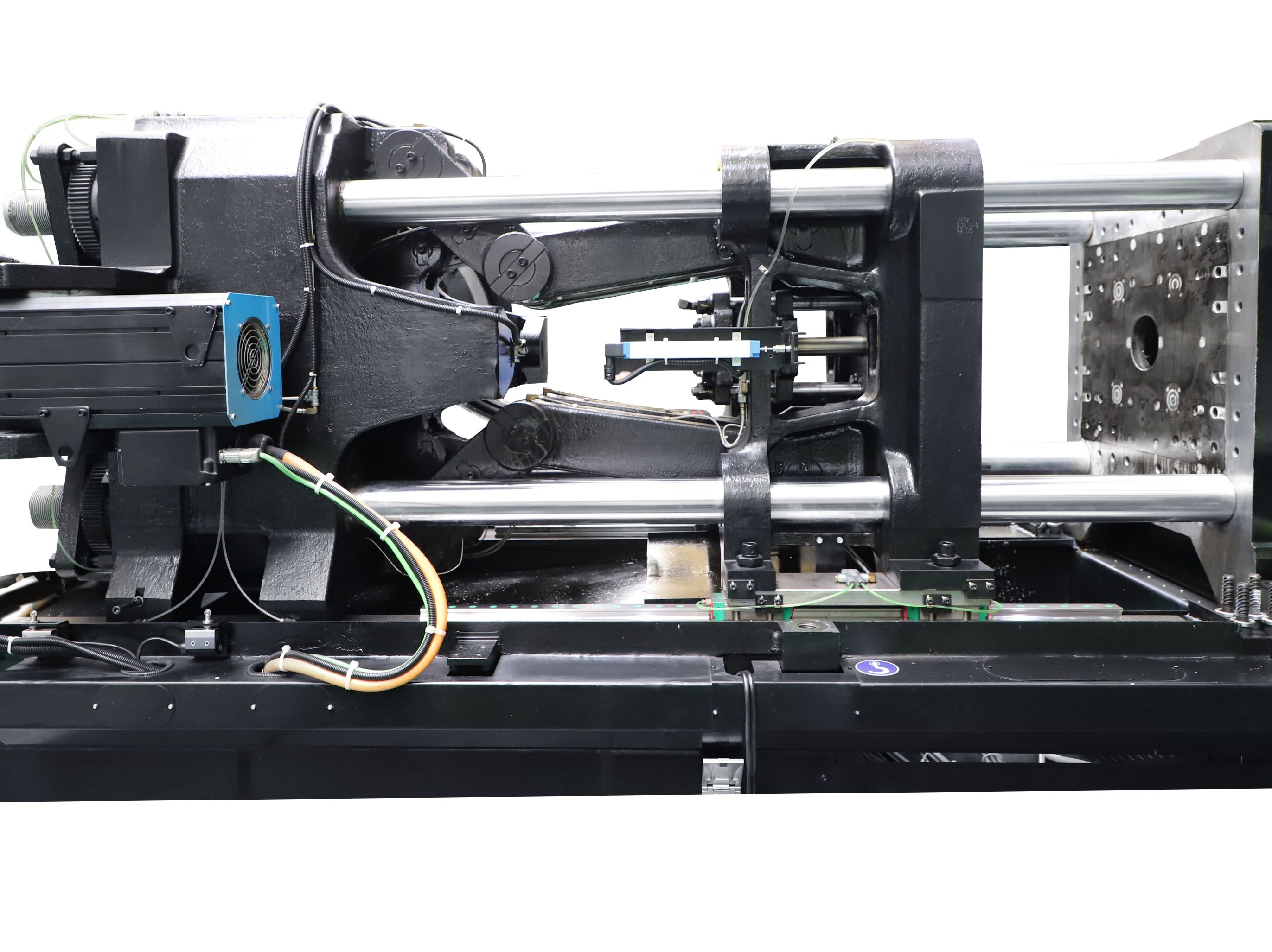

1. The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products. 2. Platen, tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation. 3. The rigidity of overall mold locking is increased by more than 25%.

Developed based on the MuCell process, it can be equipped with aircraft-grade aluminum alloy mold technology, ceramic coating technology, and FLEXflow servo needle valve runner system to achieve maximum product weight reduction while still performing at its best.

1. Improved efficiency of 30-80%, estimated according to different production processes. 2. Less demand on equipment and operators, space saving. 3. Effective control of color differences caused by the same injection molding machine. 4. Simultaneous production of different shapes of parts. 5. Automated assembly is easier through uniform shrinkage and deformation after a set of workpieces are produced simultaneously.

Developed based on the chemical foaming process, it can be equipped with Core-Back precision mold opening and other technologies to achieve maximum product weight reduction while still performing at its best.
