High performance horizontal injection molding machine
Designed for large precision parts
The YIZUMI cost-effective two-platen injection molding machine is your long-term trust of the better choice. Through its reliable performance and high-quality output, it could not only provide the client with excellent productivity but also greater value.

Application Highlights

High precision

Mold closing and opening are controlled by high-response and high-speed proportional valves, with mold opening repeatability up to ±0.1mm.

High efficiency

Shorter dry cycle times(4.1 seconds for UN1000DP Euromap 6) and 22% higher productivity through optimized clamping structure for quick mold transfers and clamping force build-up.

Energy saving

Benefit from the high-performance Eco servo drive technology and the piston variable pump, which has strong power, fast response. The energy consumption could be reduced by 56%.

Anti-impact synchronous locking mechanism

The fast, reliable and durable synchronous locking nut mechanism is driven by patented impact-cushioning cylinders and performs movements accurately.

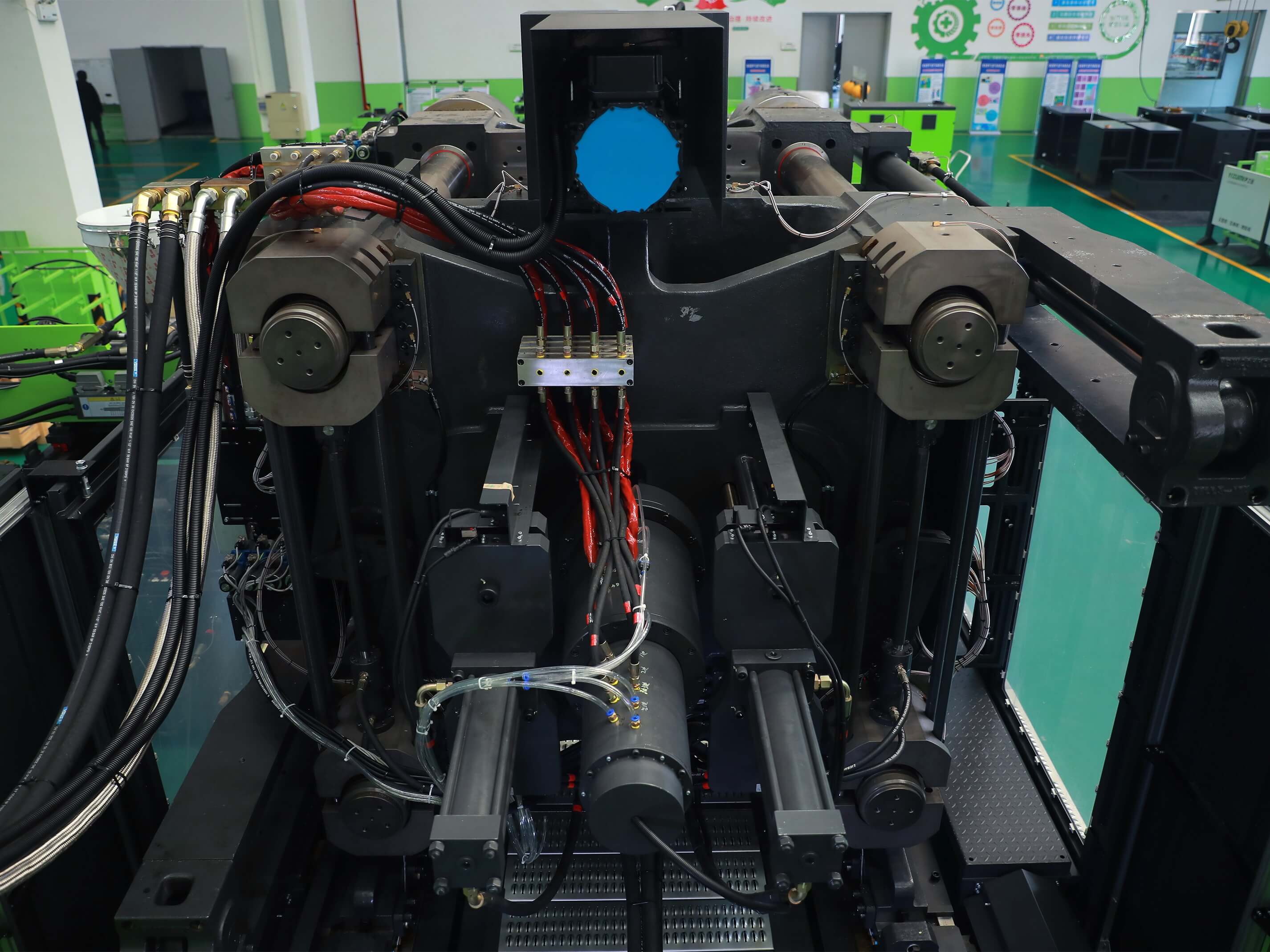

Integrated injection liner guide

High-rigidity carriage supports and double-deck guide rails are designed with low resistance and ensure high injection precision.

Independent high-pressure cylinder design

High-pressure cylinders offer large mold opening force, which solves the problem of difficult mold opening in the production of deep-cavity parts.

Hydraulic System

The excellent performance of DP series benefits from the high-performance Ecoservo drive technology and the piston variable pump, which has strong power, fast response, little internal leak and significant energy savings.

Product Video

Two-platen Injection machine

  • With the use of rigorous and innovative Germany processes, gives every material distinctive properties and provides new ideas of application and efficient, intelligent material combinations.

High-gloss car spoiler

  • Material: Finalloy® EBP-830 PP/EPDM+T20
  • Part weight: 1,360g
  • Cycle time: 68s

Smart bumprt manufacturing solution

Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Processes
D1 Series Two-platen Injection Molding Machine

Innovative Practice of Large-tonnage Two-platen Machine

Two-platen Multi-component Injection Molding Machine

Innovative Manufacturer of high-end multi-component injection molding

PAC-K3 Series High-speed Injection Molding Machine

To upgrade equipment power, injection rate, precision and energy consumption to further improve injection stability.

Double parallel cylinders

Adopt double proportion closed-loop control technology, fully closed-loop control of the injection and holding (pressure and velocity), proportional control of back pressure to ensure high repeatability of injection end position, and product weight repeatability less than or equal to 3‰.

High performance Ecoservo drive technology

Equipped with plunger variable pump system, large power, fast response, small internal leakage, significant energy saving The driving system and injection unit are matched in a modular manner, so that the power of the whole machine can be customized and the loss can be minimized Standard with open mold synchronous melt, ejection and core pulling function, shorten the forming cycle

Ultrasonic non-contact digital position control technology

Ultrasonic non-contact digital displacement sensor is used for all displacement stroke measurement, which is anti-interference and has long service life. The accuracy is 0.001%/F.S (F.S is the measurement stroke), and the position control is accurate.

MultiPro

Provide more economical injection molding solution for multi-color and multi-component product.

ReactPro

One-step molding to get a perfect surface.

FoamPro

Developed based on the MuCell process, it can be equipped with aircraft-grade aluminum alloy mold technology, ceramic coating technology, and FLEXflow servo needle valve runner system to achieve maximum product weight reduction while still performing at its best.

Service Process

01
Process/Mold Analyse and Design
  • Raw materials selection
  • Product design
  • Mold flow analysis
  • Mold design suggestion
02
Equipment Selection Suggestions
  • Product performance
  • Product quality
  • Ease of use
  • Safety requirements
03
Whole Plant Planning Advice
  • Planning of production line
  • Arrangements for people, machines, and materials according to process flow
  • Peripheral automation
  • Smart connection
04
Delivery Solutions
  • Professional installation and debugging
  • On-site operation training
  • Molding process training
05
After Sales Solutions
  • YFO services
  • Preventive maintenance
  • Device upgrade
