The thixomolding process uses magnesium alloy chips as raw materials. By conveying and cutting chips through the reciprocating screw and heating by the barrel simultaneously, the chips gradually become a semi-solid slurry that remains at the front end of the screw. When there is enough slurry stored at the front end, the screw is injected forward and the semi-solid slurry is injected into the closed mold cavity to form. Combines with die-casting and injection molding techniques, the mold and molding material of thixomolding is similar to the die-casting processes, while its injection processes are close to plastic injection molding.
Icon
More complex products can be formed

Higher injection pressure and acceleration performance.

Icon
High-precision thixomolded parts with superior surface quality

The measurement, speed, pressure, temperature, etc., could all be controlled in the molding process precisely.

Icon
Durable and resistant to deformation

Molding temperature is 50–70 °C lower than die casting, and die life is two times longer.

Icon
Thrinkage free and safer without contact to the atmosphere

The magnesium alloy slurry is in a completely closed environment, the temperature of the semi-solid slurry is lower, and less melting magnesium alloy in the barrel.

Icon
More eco-friendly

Remove the use of SF6 as protection gas.

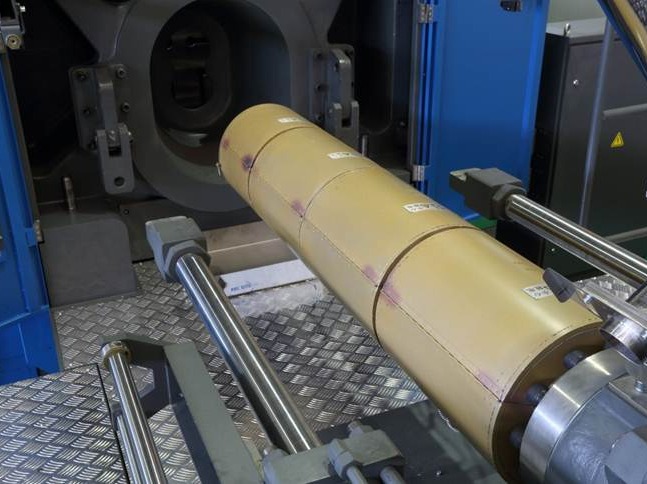

Screw barrel unit
Screw barrel unit
Special high-temperature resistant steel and heat treatment process, the screw barrel unit can withstand up to 650℃ and up to 400,000 shots.

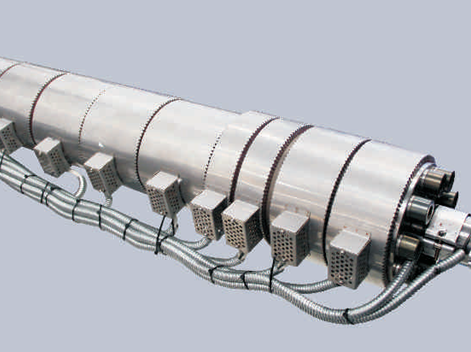

Infrared heater
Infrared heater
Utilizes an infrared heater for molten material, quick heating, effective heat preservation, and long lifetime.

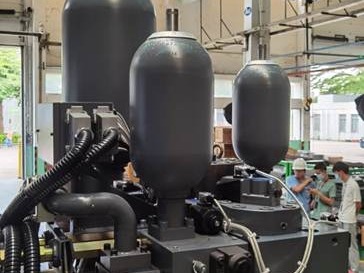

High-speed fast-response servo valve
High-speed fast-response servo valve
Big diameter high-speed servo valve controls the oil inlet opening for fast response and strong acceleration of the injection piston (up to 200m/s²).

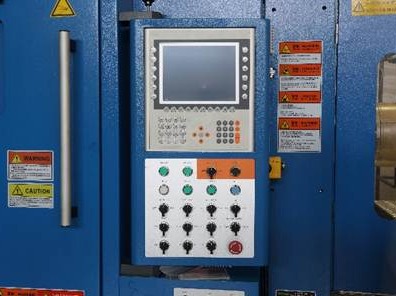

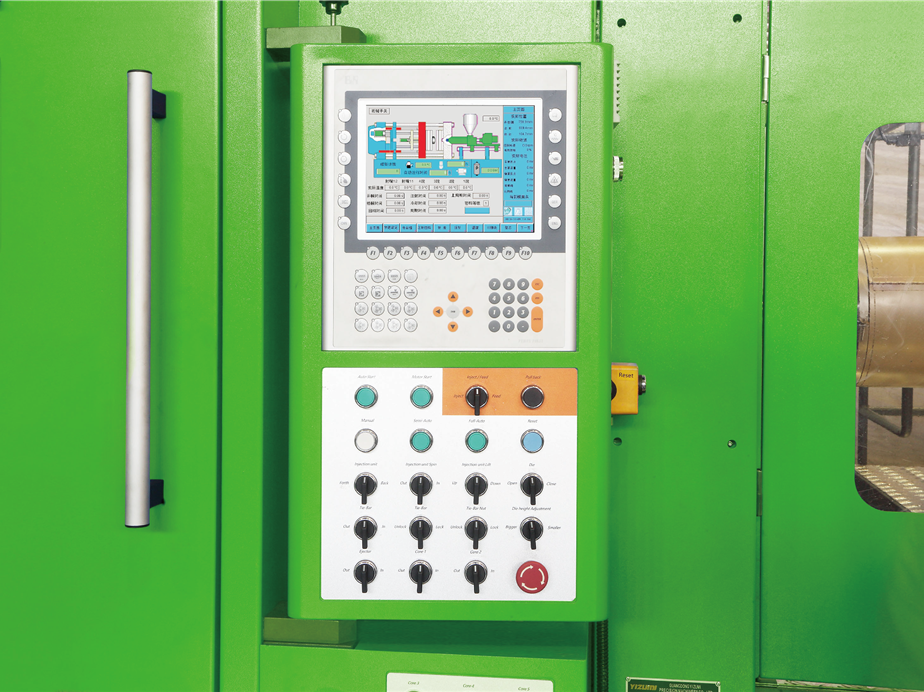

Control system
Control system
With a 10.4 inch touch screen for simple operation and a scanning time is only 0.4 ms, high-speed control can be easily achieved.

Industry Application

Relevant Recommendation
Relevant Products
Relevant Technologies
LEAP Series Die Casting Machine

LEAP Series Die Casting Machine

YIZUMI fully benchmarks against the performance and functions of world-class die-casting machines . Through the joint efforts of the international and domestic R&D teams with years of experience in the die-casting industry, we developed this series from concept to product, and have independent intellectual property rights in its technology. Yi-Cast real-time closed-loop injection system makes every injection with quality assurance. ORCA control system adopts the world's most advanced control technology and algorithm. The easy-to-use HMI enables the full digitalization of the die-casting machine. Supported by highly innovative servo + feedimng energy-efficient pump units, the machine has achieved higher Overall Equipment Effectiveness (OEE).
HII-S Series High-end Cold Chamber Die Casting Machine(1000-5000T)

HII-S Series High-end Cold Chamber Die Casting Machine(1000-5000T)

High-performance product line, customized for global markets
HM Series High-performance Hot Chamber Die Casting Machine

HM Series High-performance Hot Chamber Die Casting Machine

Focus on high-quality production, the YIZUMI HM series hot chamber die casting machine has become the most efficient machine in YIZUMI hot chamber series and has been widely applied in 3C, bathroom, clothes, hardware and house furnishing fields.
Ultra-high-speed injection control technology

Ultra-high-speed injection control technology

High-speed injection performance achieved through high speed/response servo valve control. The strong acceleration performance of injection piston is up to 200m/s², maximum injection speed up to 5m/s. High-speed control can be easily accomplished using a 10.4 inch touch screen for simple operation and the scanning time is just 0.4 ms. The modular design of the control system enables simple functional expansion and equips it with the standard configuration of the Ethernet interface, allowing it to communicate with peripherals and the accompanying management software. A real-time monitoring system would allow for quick viewing of the machine's parameters. Molding accuracy and stability at a glance, statistics on actual production parameters, the open mold end position deviation is up to 0.1mm and an injection end position variation 0.4mm, and steady performance are all provided by the multi-mode curve overlap display function.
