Foamed Briefcase

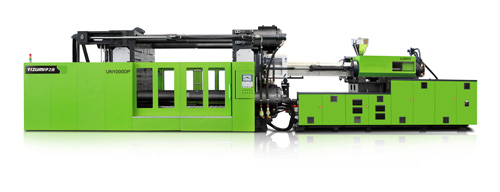

UN1000DP

DP Series Two-platen Injection Molding Machine

The UN1000DP two-platen injection molding machine which is equipped with the high-performance SmartClamp system, aircraft level aluminum mold technology, alternative temperature technology and FLEXflow servo-driven valve-gated hot runner system is able to perform FoamPro microcellular foam injection molding process developed based on MuCell technology.

Efficient: dry cycle time up to 4.1 sec, production efficiency up by 22%

Precise: part weight repeatability <3‰, platen parallelism control accuracy up to ±0.015mm/2ms

Energy-saving: energy consumption reduced by 56%

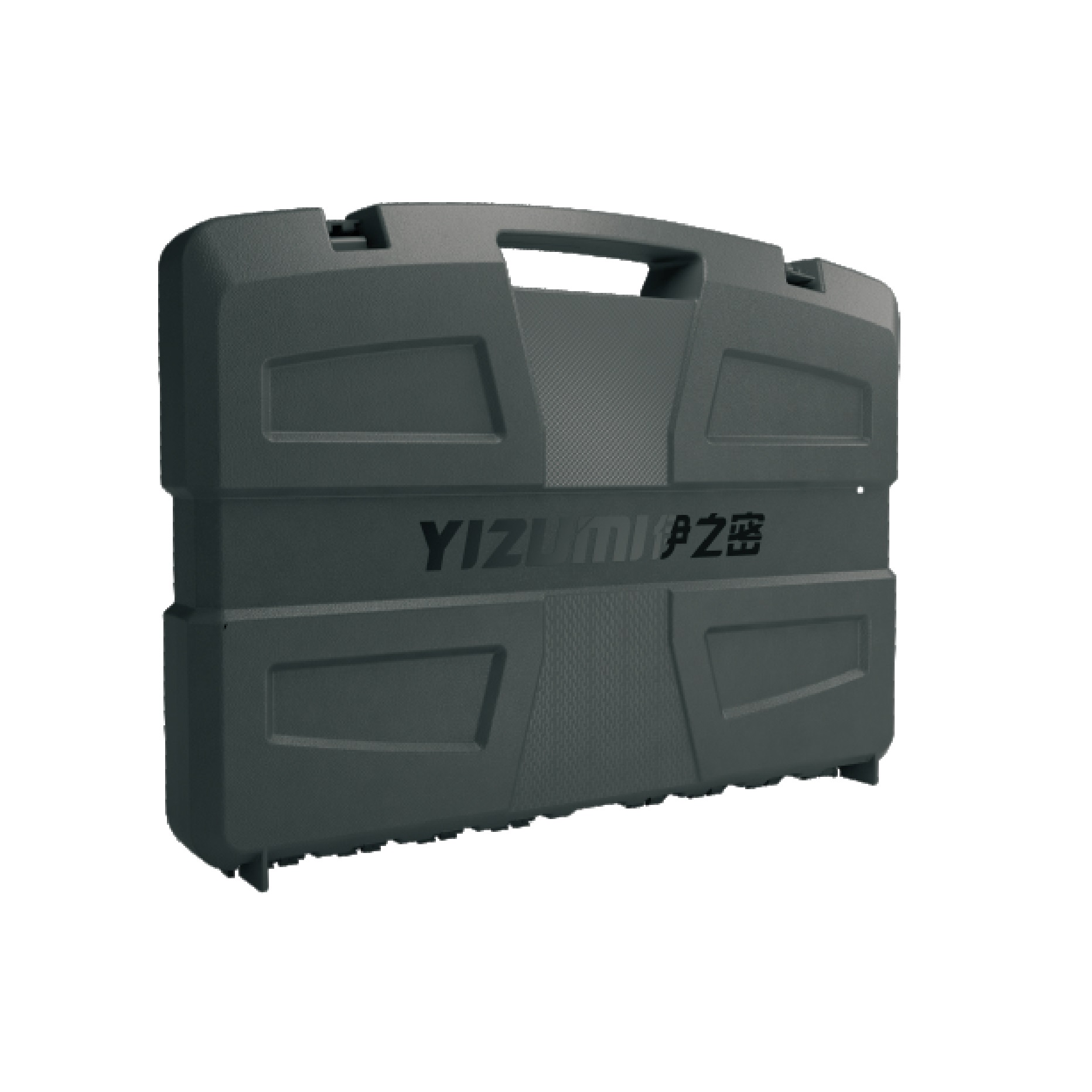

Application example: foamed briefcase

Ceramic coating technology and ATT eliminate blushing on the foamed part surface.

Material：LYB PPC foaming grades,FX240/D(PPTalc18)

Number of cavity：1

Size：570 (L) ×400 (w) ×40 (H) mm

Weight：880g

Cycle time：49s

Partner：TREXEL、GK Concept、WEIMAT-Pesch、HRSflow、single、lyondellbasell
