Online Open Week|MultiPro:Triple-color, two-color, Horizontal Rotary Table Injection Molding Will Show up Together

2020-09-08

Abstract:

Online Open Week|MultiPro:Triple-color, two-color, Horizontal Rotary Table Injection Molding Will Show up Together


Nowadays, the demand of multi-color products in different industries such as 3C component, intelligent home appliances, automobile, daily necessities is increasing. The design of multi-color products are becoming more complicated and diversified. Aiming at meeting the production requirements of various products, YIZUMI Multi-component Injection Molding Solution launches several application technologies including horizontal rotary table injection, wide-platen multi-component injection, piggyback multi-component injection to satisfy two-color and triple-color products molding. During 2020 YIZUMI Online Open Week, several new applications of MultiPro will be displayed on site.



Triple-color Insulated Water Cup In-mold Assembly Solution


Connecting to German technology, YIZUMI launched the UN220C-NSW European standard piggyback rotary shaft multi-component injection molding machine. Equipped with hydraulic and electric hybrid structure, precise positioning technology for servo Rotary shaft, triple-color combination molding technology, in-mold assembly technology, product molding process traceability technology, etc., the machine is able to produce triple-color insulated water cup. The inner and outer layers of the cup are separated, and logos such as trademarks can be added between the two layers.

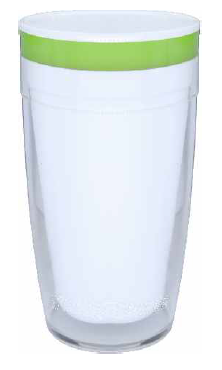

Triple-color Insulated Water Cup
Number of Cavity: 1+1
Materials: PC + PC + PC
Size (H x D): 130*75mm
Weight: 107.8g/piece
Cycle Time: 43s

Partner: Mold (FANKE), KUKA Robot



Two-color Taillight Cover Molding Solution


Equipped with “smart compensation technology for molding defects”, precise positioning technology for servo turntable, low-speed control technology, YIZUMI 750C-BTP wide-platen high-end multi-component injection molding machine is able to produce two-color taillight cover made of red and transparent PMMA. The common defects of this product include flow mark and line, black spots and so on. The solution provided by YIZUMI not only eliminate these defects, but also achieve a very high stability of CMK, less than 0.21%.

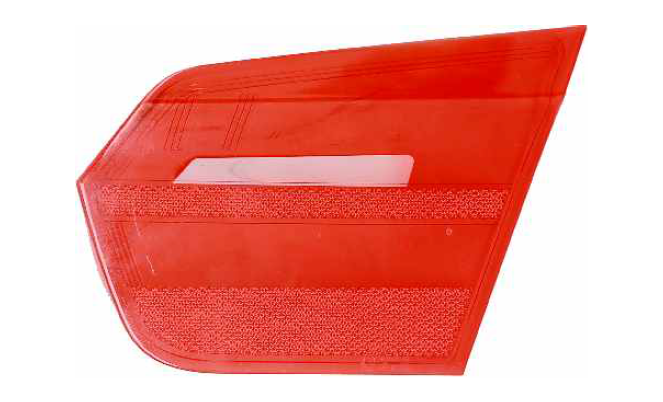

Two-color Taillight Cover
Number of Cavity: 2+2
Materials:PMMA + PMMA
Size (L x W x H): 252 x 158 x229mm
Weight: 82g/piece
Cycle Time:50s

Two-color Taillight Cover Horizontal Rotary Table Injection Molding Solution


As vertical rotary table is going to be mature, YIZUMI combines the two-platen injection molding and launches MultiPro-M Horizontal Rotary Table Injection Molding Solution, which could be applied to two-platen machines covering 500T-3400T. Compared with the vertical rotary table, the horizontal rotary table injection molding machine has a wider range of mold using under the same tie bar spacing, which is particularly suitable for injection molds with larger dimension. It could satisfy a larger two-color product molding under the same clamping unit.

The MultiPro-M solution will produce two-color taillight cover on site by applying UN900DPM-hM during the Online Open Week. The product features with stable quality, high repeatability, shock resistance, and excellent transmittance.

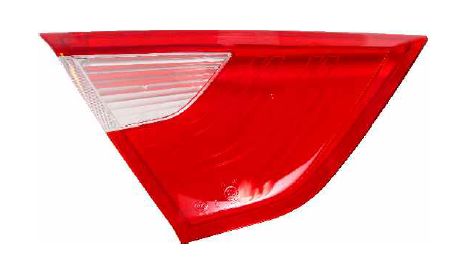

Two-color Taillight Cover
Number of Cavity: 2
Material: White PMMA 8N 00000 & Red MMA 8N 33691
Size (L x W x H): 570 x 400 x 40 mm
Weight: 99.5g
Cycle Time: 60s


※The Data above were acquired by testing in the factory, only for your reference. The specific data please refer to the actual equipment.




The preview of YIZUMI Online Open Week will keep updating, stay tuned!
