To upgrade equipment power, injection rate, precision and energy consumption to further improve injection stability.
With the development trend of thin-wall container and high production efficiency, PAC-K3 series high-speed injection molding machines are ideal for the molding of multi cavity thin-wall packaging products. It has the advantages of high rigidity, fast injection speed and high precision to meet the diverse production demands in the future. Yizumi can customize turnkey solutions for different customers.

Application Highlights

System pressure and injection speed upgrade

The system pressure and injection speed are upgraded to ensure the stable molding of thin-wall multi-cavity products.

Configuration upgrade

PAC380K3 and above model are generally equipped with hydraulic synchronous plasticizing function, which shortens the product molding cycle.

The upgraded clamping unit

The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products.

Control system upgrade

The PAC-K3 equipped with Inovance Iventure System has faster response and higher control accuracy.

The humanized design of the machine

Daily operation and maintenance is more convenient.

Wide range of application

Widely used in food packaging, beverage packaging, disposable medical consumables and other industries.

High response servo motor

The system pressure is upgraded to ensure the stable molding of thin-wall multi-cavity products.

Hydraulic synchronous plasticizing function

The plasticizing is synchronized with the cooling, mold opening and part picking, shorter cycle time. PAC380K3 and above model are generally equipped with hydraulic synchronous plasticizing function, which shortens the product molding cycle;

Clamping unit

The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products; Platen,tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation; The rigidity of overall mold locking is increased by more than 25%

Control system

The PAC-K3 equipped with Inovance Iventure System has faster response and higher control accuracy.

Product Video

High-speed packaging injection machine

  • machine upgrade introduction

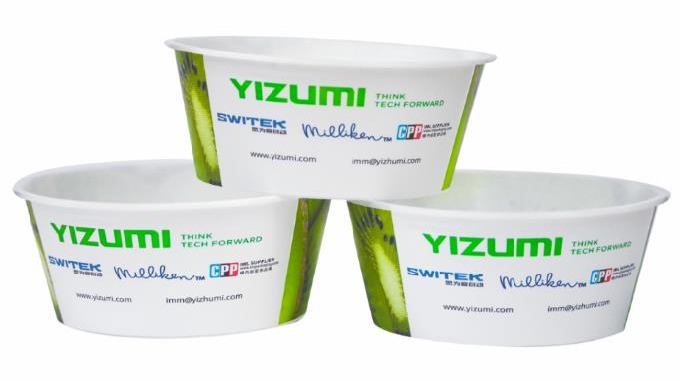

Thin-wall IML cup

PET packaging box

Food box cover

Petri dish

Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Processes
DP Series Two-platen Injection Molding Machine

Specialize in large precision parts manufacture

D1 Series Two-platen Injection Molding Machine

Innovative Practice of Large-tonnage Two-platen Machine

Two-platen Multi-component Injection Molding Machine

Innovative Manufacturer of high-end multi-component injection molding

Inovance Iventure System

1. Including Inovance controller, servo drive and high-response motor. 2. Communication between the controller and the drive upgrades to digital type. Same brand controller and drive show better performance, faster and more accurate. 3. Quick and stable mold opening, smooth mold closing with no impact, less wear and tear to machine. 4. Mold opening repeatability is within ±0.5mm, with overshoot less than 2.0mm. 5. Deviation of injection end position is less than 0.25mm. 6. Deviation of material feeding position is less than 0.2mm. 7. Temperature overshoot of first-time heating is less than 3℃, within ± 1℃.

Synchronous plasticizing

1. The plasticizing is synchronized with the cooling, mold opening and part picking, shorter cycle time. 2. PAC380K3 and above model are generally equipped with hydraulic synchronous plasticizing function, which shortens the product molding cycle.

Optimized clamping unit

1. The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products. 2. Platen, tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation. 3. The rigidity of overall mold locking is increased by more than 25%.

FoamPro

Developed based on the MuCell process, it can be equipped with aircraft-grade aluminum alloy mold technology, ceramic coating technology, and FLEXflow servo needle valve runner system to achieve maximum product weight reduction while still performing at its best.

Stack Mold Technology

1. Improved efficiency of 30-80%, estimated according to different production processes. 2. Less demand on equipment and operators, space saving. 3. Effective control of color differences caused by the same injection molding machine. 4. Simultaneous production of different shapes of parts. 5. Automated assembly is easier through uniform shrinkage and deformation after a set of workpieces are produced simultaneously.

Service Process

01
Process/Mold Analyse and Design
  • Raw materials selection
  • Product design
  • Mold flow analysis
  • Mold design suggestion
02
Equipment Selection Suggestions
  • Product performance
  • Product quality
  • Ease of use
  • Safety requirements
03
Whole Plant Planning Advice
  • Planning of production line
  • Arrangements for people, machines, and materials according to process flow
  • Peripheral automation
  • Smart connection
04
Delivery Solutions
  • Professional installation and debugging
  • On-site operation training
  • Molding process training
05
After Sales Solutions
  • YFO services
  • Preventive maintenance
  • Device upgrade
